PET High Temperature Tape
Model: WK600
Model: WK430
Fiberglass Filament Reinforced Tape
Features: Reinforced with fiberglass and polyester filaments for high tensile strength, abrasion resistance, moisture resistance, secure adhesion, and clean removal on qualified surfaces. Commonly evaluated as an alternative for applications using 3M 8915 and 8934.

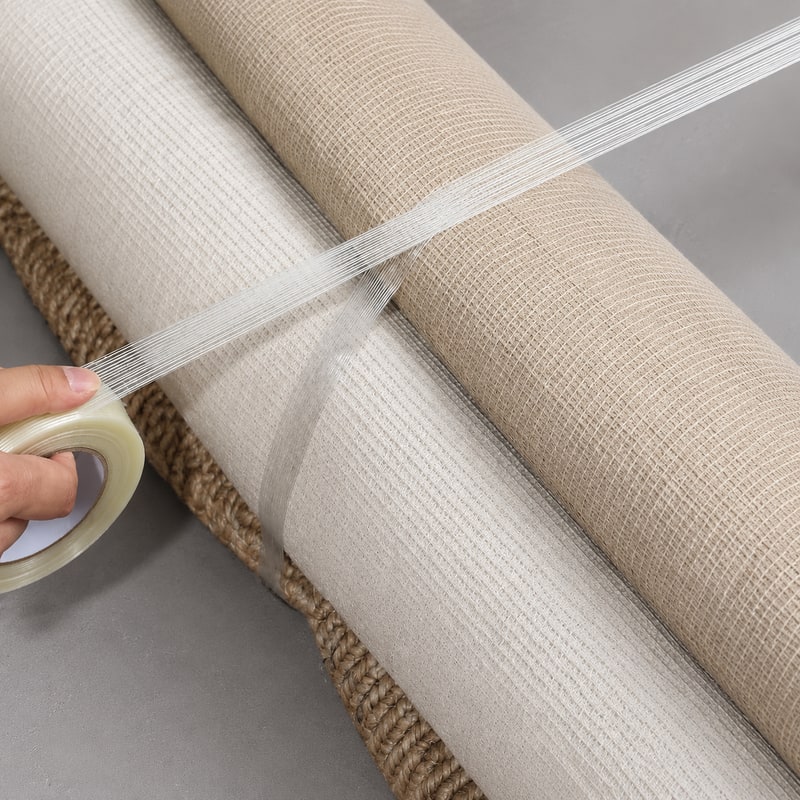

Usage: Appliance packaging, carton reinforcement, palletizing, LCL shipment protection, steel bundling, and industrial transport fixation. Final suitability must be confirmed through application-specific testing.

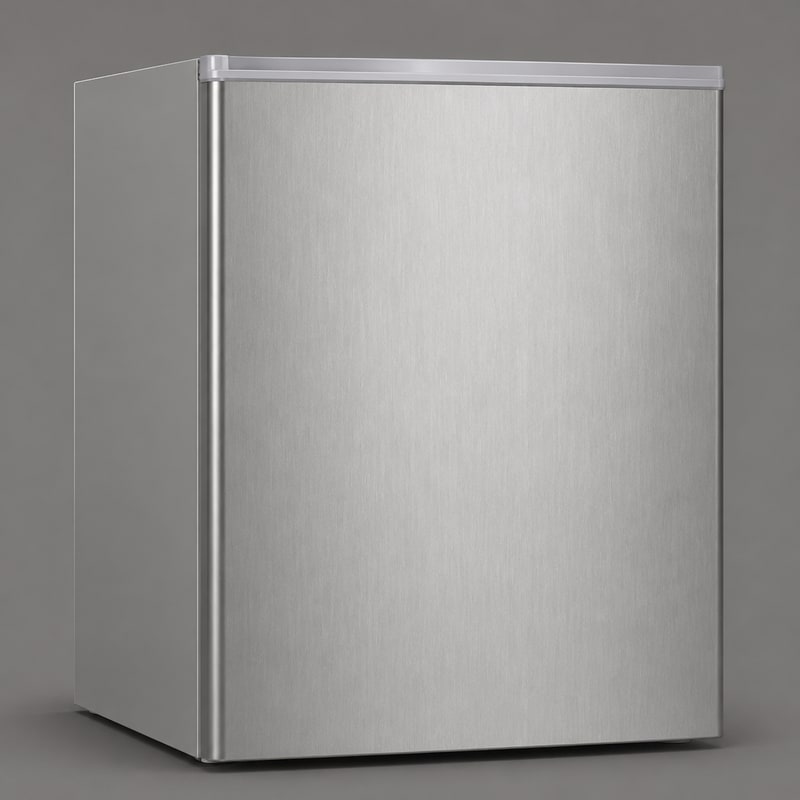

Usage: Home appliance packing (washing machine/fridge/freezer); metal materials and wooden furniture's packaging; carton's packing, LCL goods' packaging and steel's banding.
Request pricing and lead time
Share your required width, thickness, quantity, application, and destination for a tailored quotation.
| Product Name | Model No | Carrier | Thickness (mm) | Heat Resistance (°C) | Tensile Strength | Equivalent |
|---|---|---|---|---|---|---|
| Fiberglass tape | WK430-1 | Fiber glass | 0.17 | -20~80 | 800 | 3M898 |
| WK430-2 | Mesh polyester fiber | 0.20 | 850 | — | ||
| WK430-3 | Polyester fiber | 0.17 | 750 | — | ||
| WK430-4 | Double-sided | 0.18 | 850 | — | ||
| WK430-5 | Non-residual glass fiber | 0.14 | -10~80 | 850 | — | |
| WK430-6 | Residual glass fiber | 0.15 | -5~70 | 850 | — |
Glass fiber tape is a kind of high-performance industrial tape based on high-strength glass fiber cloth and coated with high-temperature resistant silica gel or acrylic adhesive. It has excellent heat resistance, insulation, tensile strength and chemical resistance, so it is widely used in the fields of electronics, electricity, new energy and industrial manufacturing.

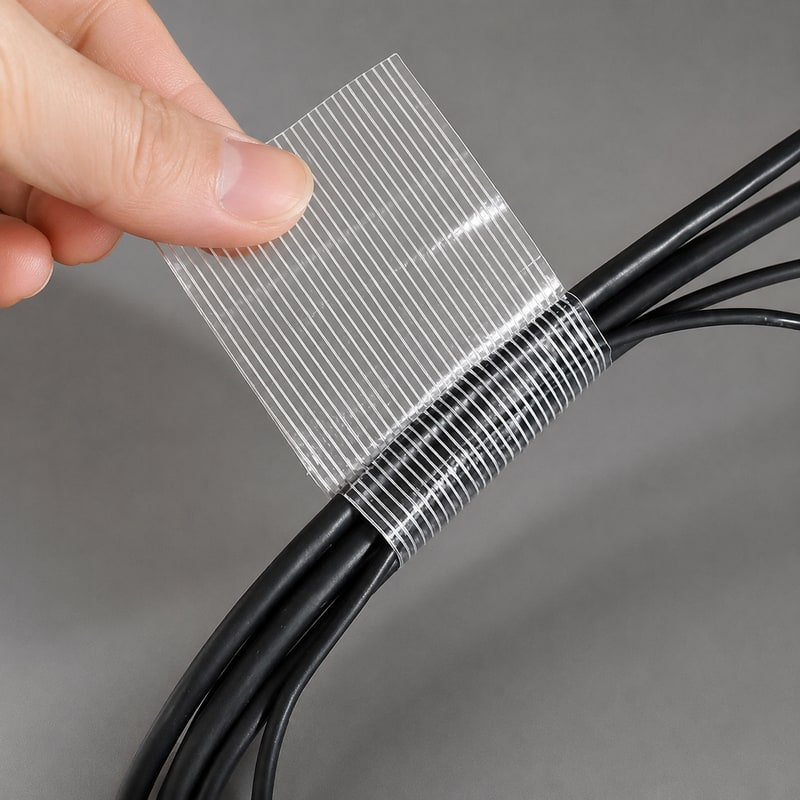

Bundling and Temporary Fixing of Wire Harness
Glass fiber adhesive tape is soft, easy to stretch and good to fit, which is very suitable for bundling, branch fixing and temporary fixing of wire harness.
It is often used to arrange and fix the internal wiring harness of household appliances, automotive wiring harness and internal connecting wires of electronic equipment.
Light Insulation and Winding
Due to the light and thin material, fiberglass tape is suitable for insulation scenes sensitive to thickness, such as:
Lightweight Insulation of Small Motor Coils
Auxiliary Insulation of Inductors and Transformers
Insulation Winding of Electronic Components
Lightweight Wrapping of Lithium Battery Cells and Modules

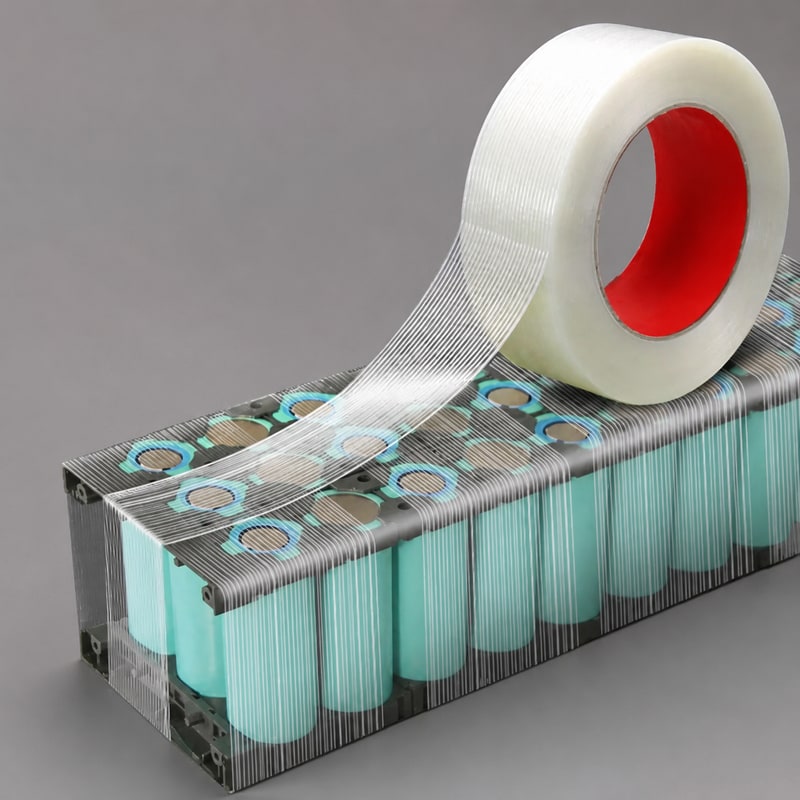

In the manufacture of lithium batteries, glass fiber tape is often used for:
Light Wrapping on Battery Cell Surfaces
Temporary Fixation Between Battery Cells and Protective Plates
Wire Harness Bundling and Insulation Inside Modules
Its thin and light characteristics will not increase the extra thickness of the battery cell, and it is suitable for designs with high space requirements.
Temporary Fixation and Shielding in Electronics Manufacturing
Glass fiber tape can be used in SMT and PCB processes:
Temporary Fixing of Flexible Circuit Boards (FPC)
Masking areas that do not need to be tinned or sprayed.
Temporary Protection During Manufacturing
