PET double-sided tape

Product Name	Model	Carrier	Total Thickness (μm)	Colour	Adhesion to Steel (N/25mm)	Holding Power (hr)	Heat Resistance (long term, °C)	Heat Resistance (short term, °C)	Tesa Equipment
PET double-sided tape	WK6983	PET	30	Transparent	9	≥48	100	150	4983
	WK6972		50		8				4972
	WK6980		80		10				4980
	WK6982		100		12				4982
	WK6928		125		14				4928
	WK6967		160		16				4967
	WK6965		205		18				4965
	WK6970	PVC	245	Milk	18		-	-	4970
	WK6968		325		20		-	-	4968

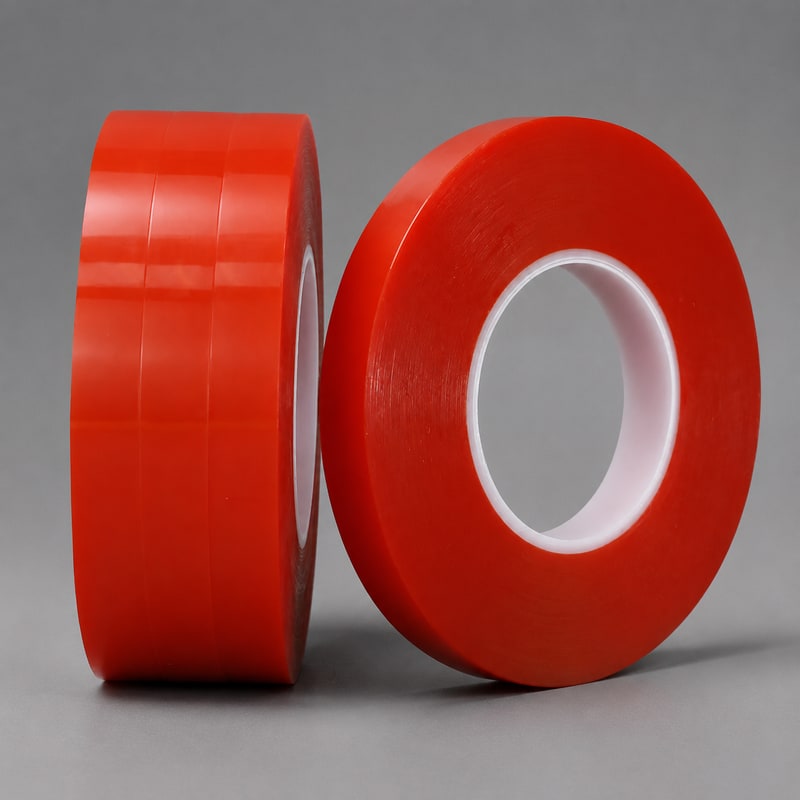

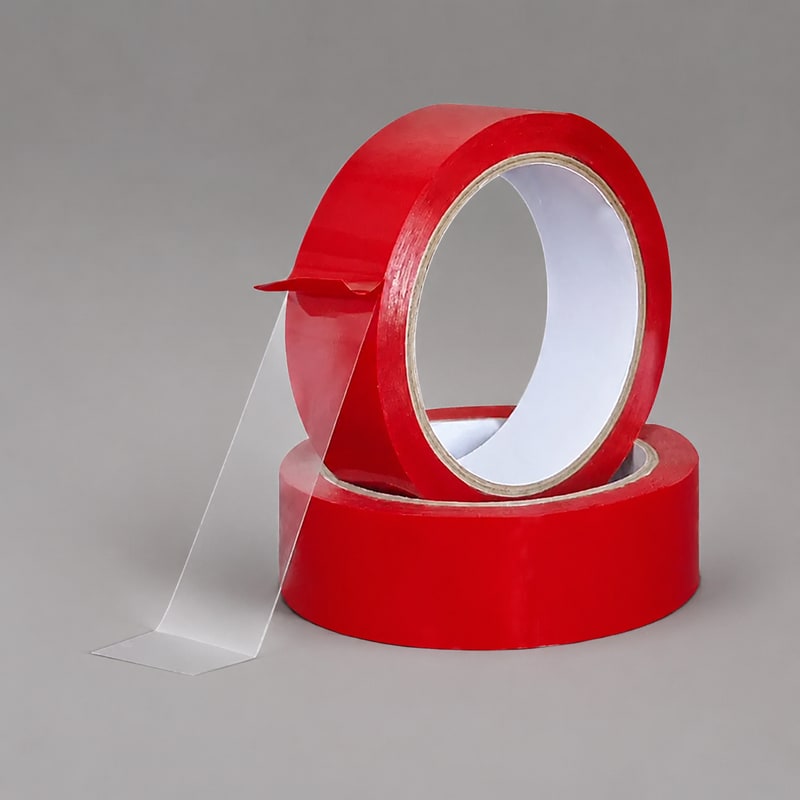

PET double-sided tape is based on PET film and coated with acrylic acid or silicone adhesive on both sides. Its core advantages are stable size, wide temperature resistance, strong shear resistance, moisture resistance, chemical resistance and insulation, and it is easy to die-cut and adapt to batch special-shaped assembly.

Consumer Electronics And 3C Precision Manufacturing

Adapting to the requirements of lightweight, high precision and clean assembly.

1. Fixation of core components: used for fixing lithium batteries and battery compartments of mobile phones, tablets and other equipment (ultra-thin, 0.03mm, space saving and displacement prevention); Fix FPC, PCB, camera module, micro motor and other precision components (even pressure to prevent deviation); Black shading can be used for camera module to prevent light leakage.

2. Bonding of optical components: bonding the LCD/LED screen and the middle frame, and fixing the light guide plate and the reflective film of the backlight module (the light transmittance of the transparent model is more than or equal to 90%, and there is no bubble overflow); Used for fixing the lenses and keys of smart watches and headphones (suitable for small size and light weight, easy to rework after tearing off without residual glue).

3. Attachment of auxiliary components: seamless attachment of electronic equipment nameplates and LOGO (to enhance the texture); Fixed dust screen, sensor grounding piece, etc. (insulation does not interfere with the circuit); Silicone rubber series can be bonded with low surface energy materials such as silicone rubber and PP to solve the problem of antenna and NFC module fixation.

Automobile Industry

Meet the requirements of high and low temperature resistance, vibration resistance, environmental protection and no peculiar smell, and cover the internal and external parts for fixing.

1. Interior assembly: glue the center console, door trim panel, etc. (environmentally friendly adhesive has no VOC and meets the interior standards); Fixed atmosphere lamp, sound insulation cotton and wiring harness (shock absorption and abnormal noise reduction); The flame-retardant model is suitable for fixing the interior near the fire source area to meet the fire protection requirements.

2. Exterior decoration fixing: paste the automobile nameplate, window trim, etc. (resistant to ultraviolet and rain, not degumming and yellowing for a long time); Fix small parts such as rearview mirror decorative cover (avoid punching and reducing process to prevent corrosion); The high-temperature model (≥100°C) is used to fix the engine compartment wiring harness, which can withstand high-temperature radiation.

3. Vehicle-mounted electronic fixation: glue the driving recorder, ETC and other back glue (easy to install, no residual glue to remove and no damage to the car body/glass).

White Goods And Smart Home Manufacturing

To meet the requirements of temperature resistance, waterproof and batch automatic assembly.

1. Fixing the control panel: bonding touch panels and display screens such as refrigerators and air conditioners (transparent models do not block the view, and are waterproof, sealed and short-circuited); Fixed air outlet grille and temperature and humidity sensor (resistant to alternating high and low temperatures to ensure detection accuracy).

2. Sticking of functional parts: sealing strips and heating tubes of high-temperature household appliances (ovens and water heaters) are fixed (V-0 flame retardant, stable and not aging at high temperature); Bonding nameplate and foot pad of household appliances (easy to die-cut and adapt to complex shell to improve assembly efficiency).
